PROJECT ROLE

Glazing System Shop Drawings

SYSTEMS DESIGNED

Exterior Window Units

PROJECT DESCRIPTION

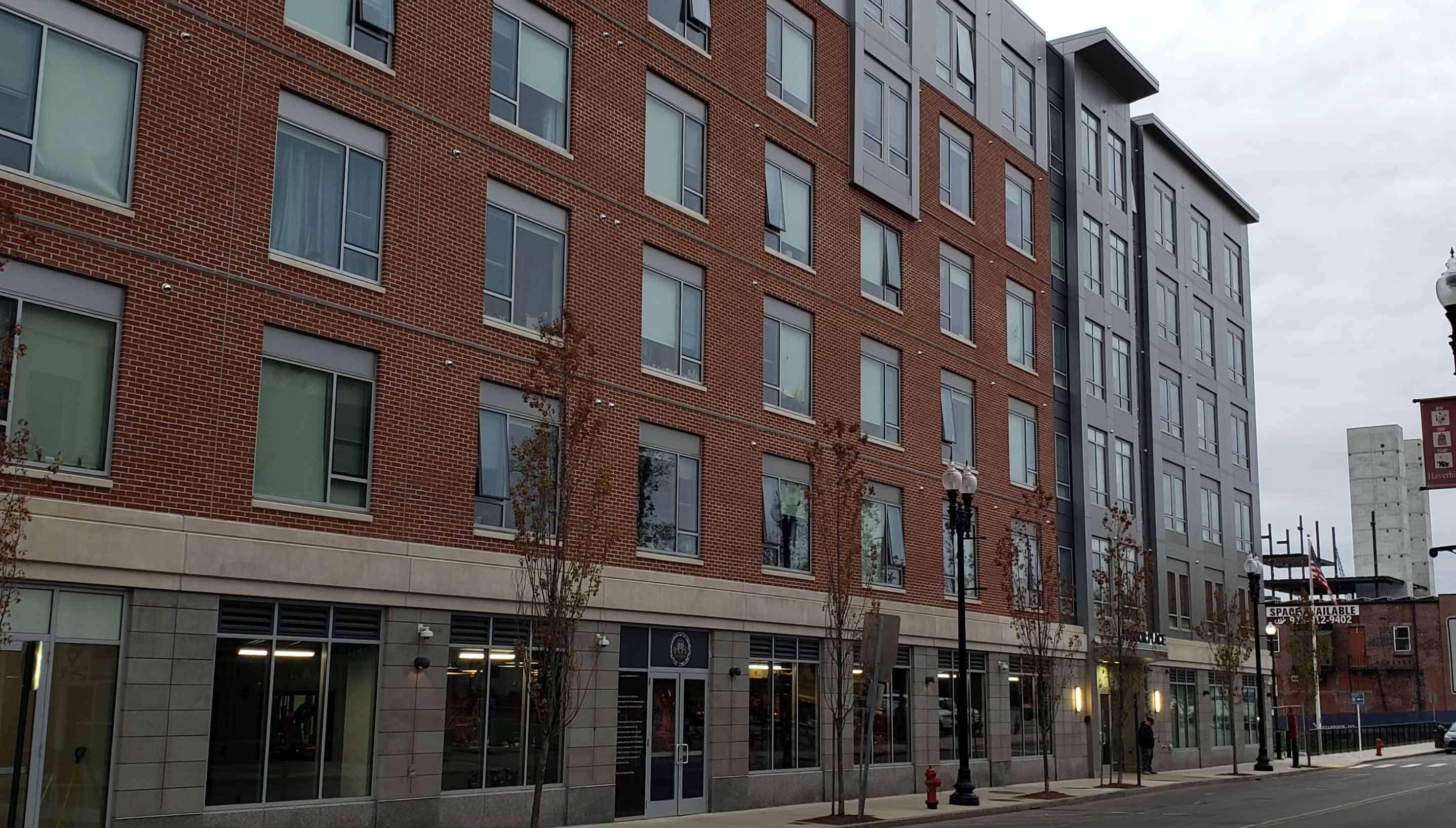

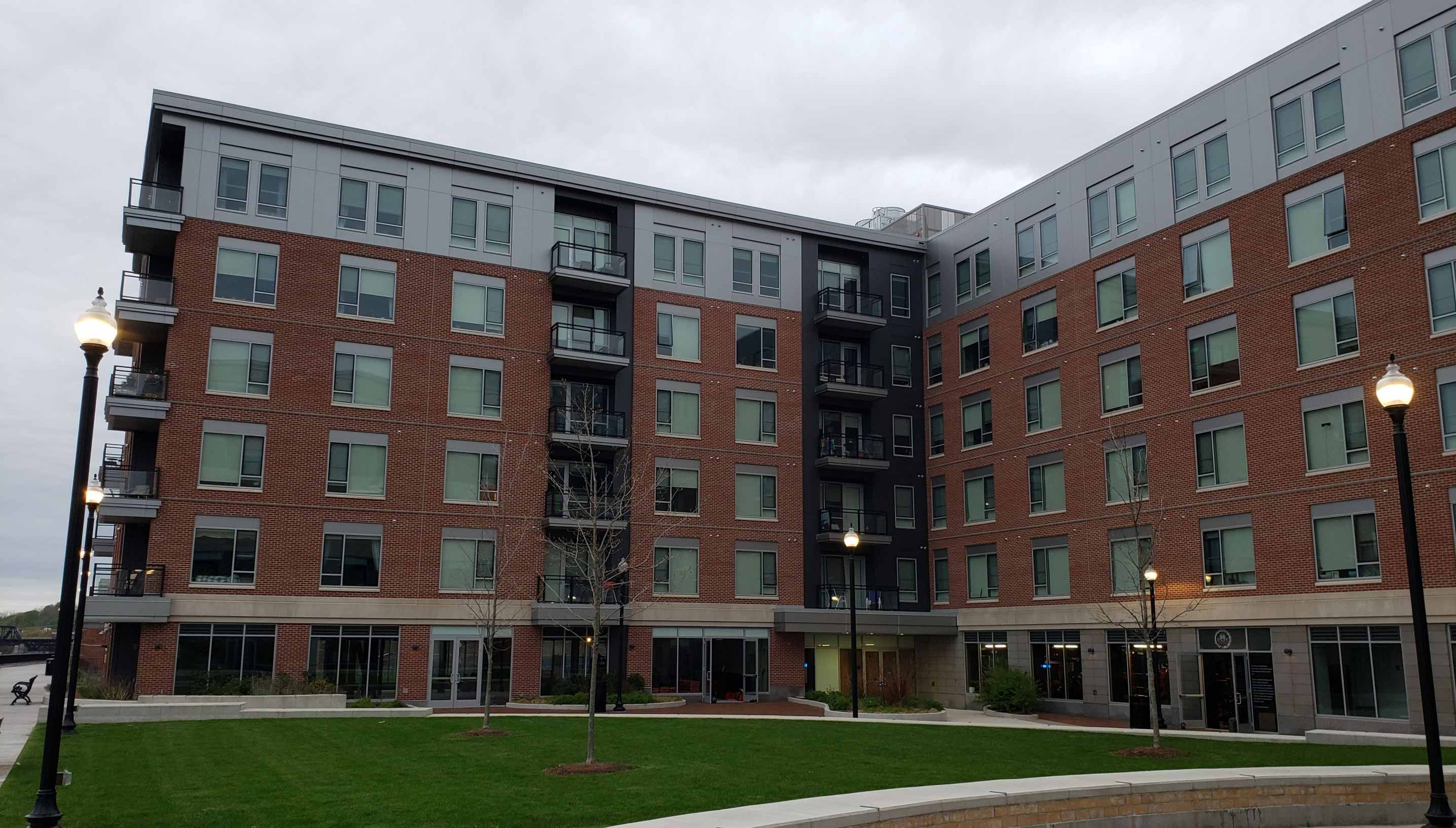

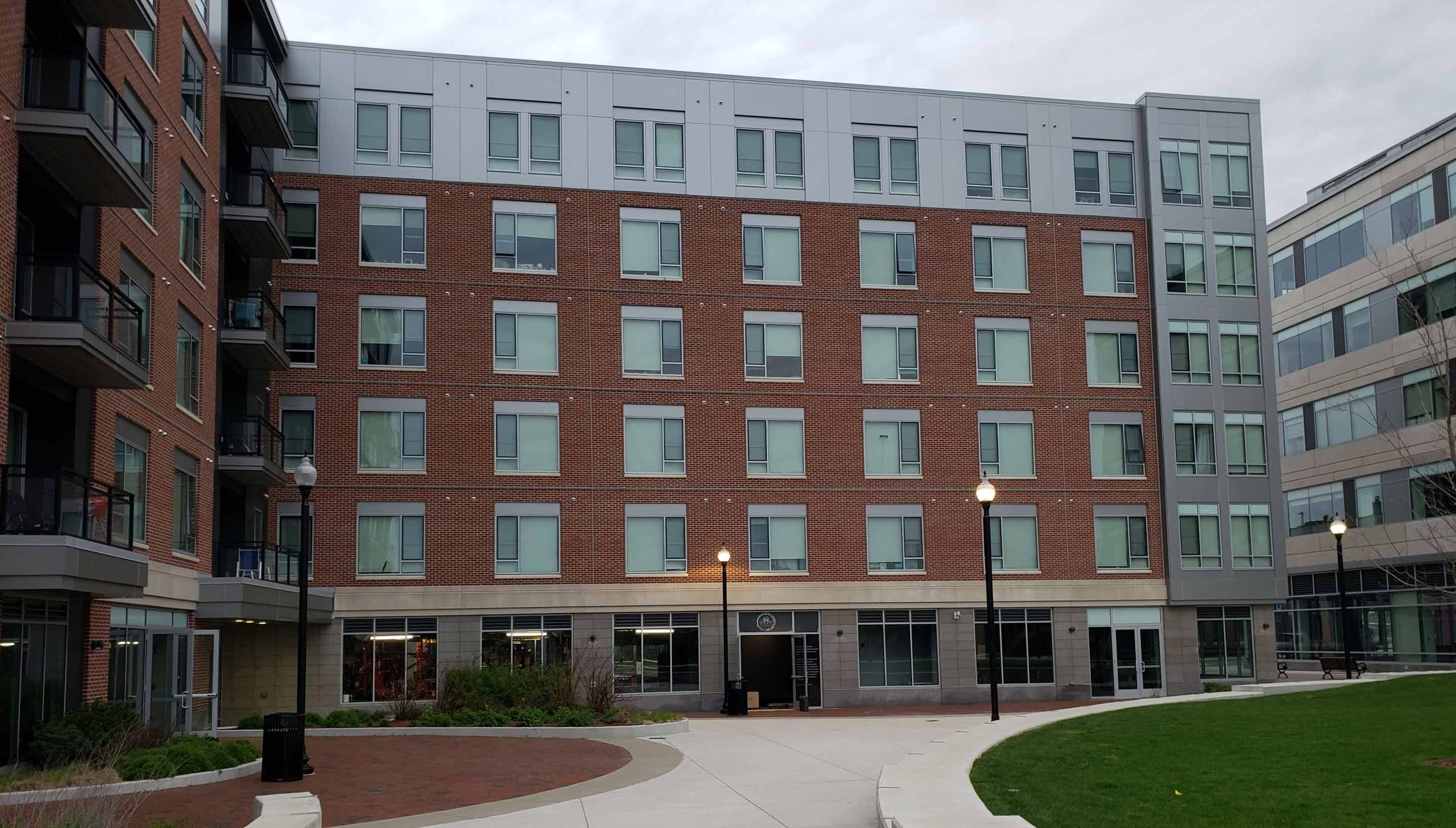

Harbor Place on the Merrimack River is a new mixed use development  designed to  provide both pedestrian corridors and offer a wide variety of uses to enhance the local business district.  One of the buildings on the site is a 6 story, 118,000 sq ft mixed use structure with ground floor commercial space and 80 residential units above.  AE Dynamics provided shop drawings for the exterior window units. Detailed and dimensioned frame elevations, general installation of aluminum glazing system information, and relevant component details were included.
